Biolight V9 Vital Signs Monitor (1-Year Warranty)

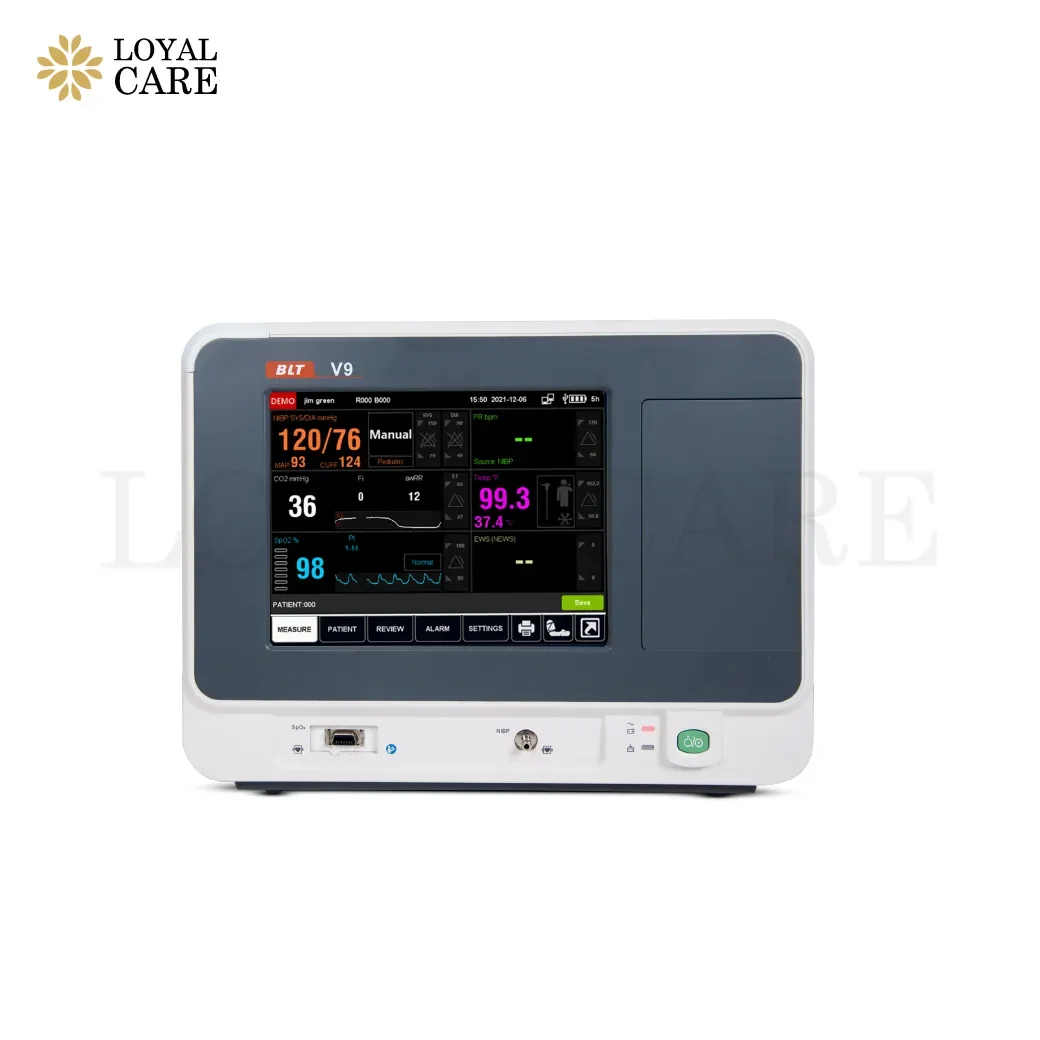

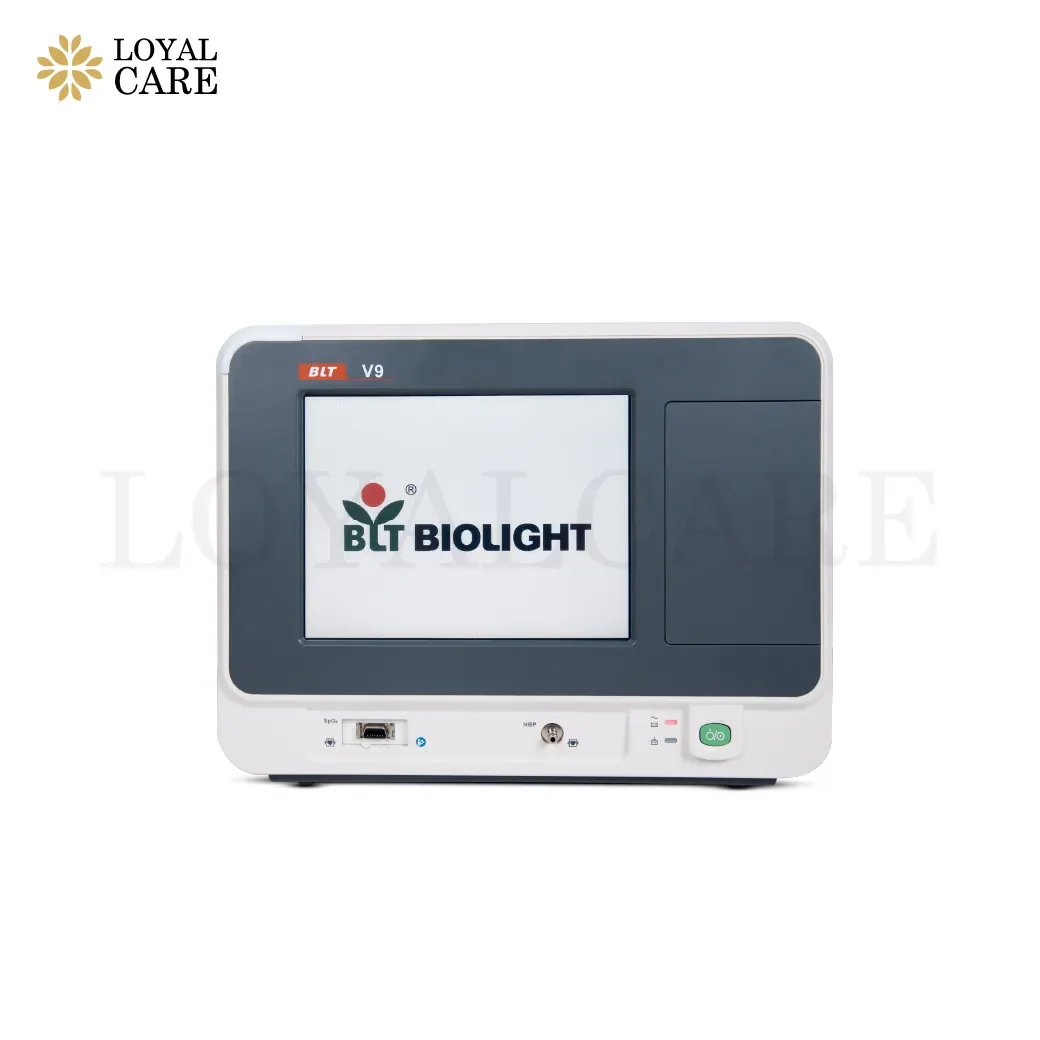

Biolight V9 Vital Signs Monitor

Thai FDA Advertising License: ฆพ.1264/2568
Advertisement No.: 68-2-2-2-0005061

Intended Use

Designed for continuous monitoring of patient vital signs, including:
   Blood Oxygen Saturation (SpO₂)
   Pulse Rate (PR)
   Respiratory Rate (RR)
   Non-Invasive Blood Pressure (NIBP)
   Body Temperature

General Specifications

• Dimensions (W × D × H): 308 × 233 × 125 mm

• Weight: ≤ 4 kg

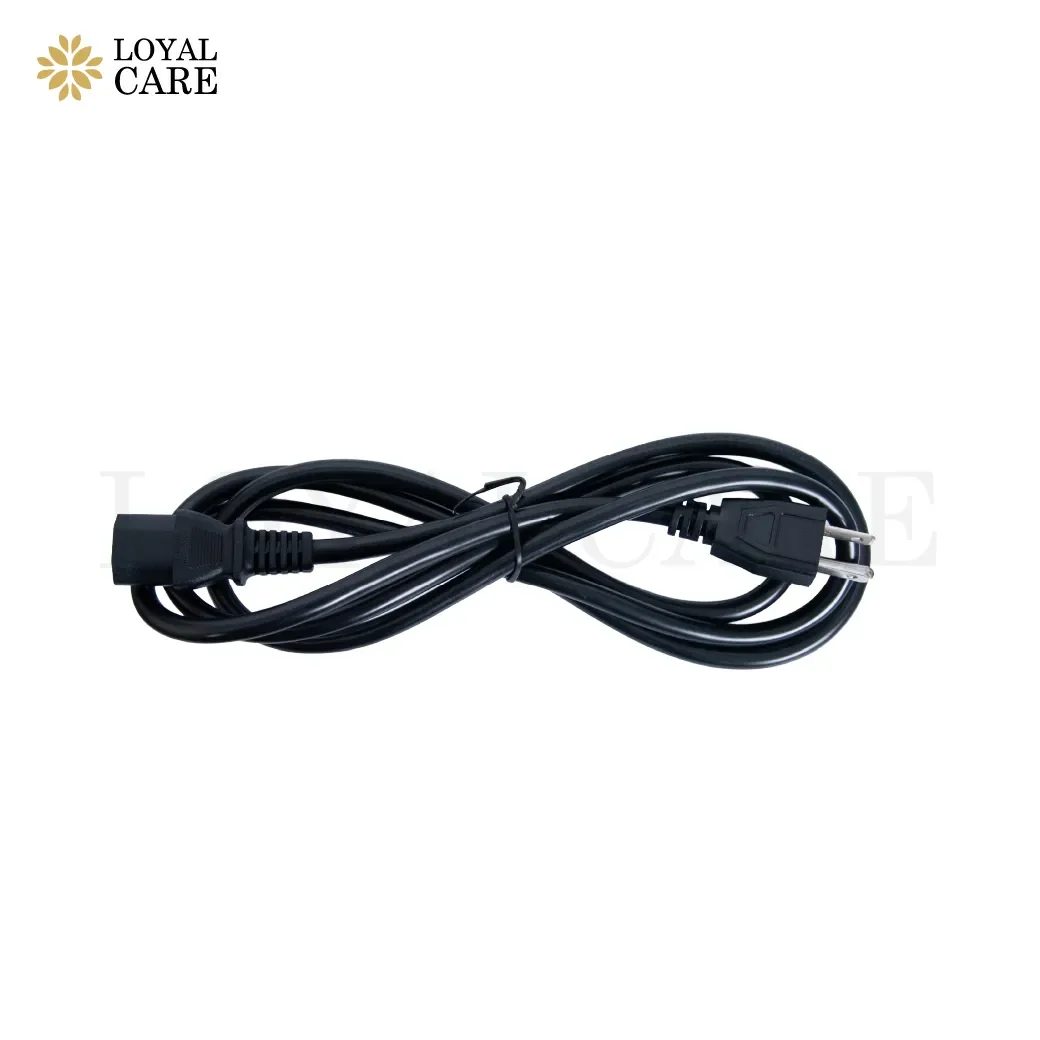

• Power Supply: AC 100–240 V, 50/60 Hz

• Input Current: 1.5–0.7 A

• Battery: Rechargeable Lithium-ion, 10.8 V / 6.6 Ah

• Battery Runtime: Up to 10 hours

• Display: 8-inch TFT Color LCD Touchscreen

• Resolution: 800 × 600 pixels

Key Features

• Measures SpO₂, Pulse Rate, Respiratory Rate, NIBP, and Body Temperature

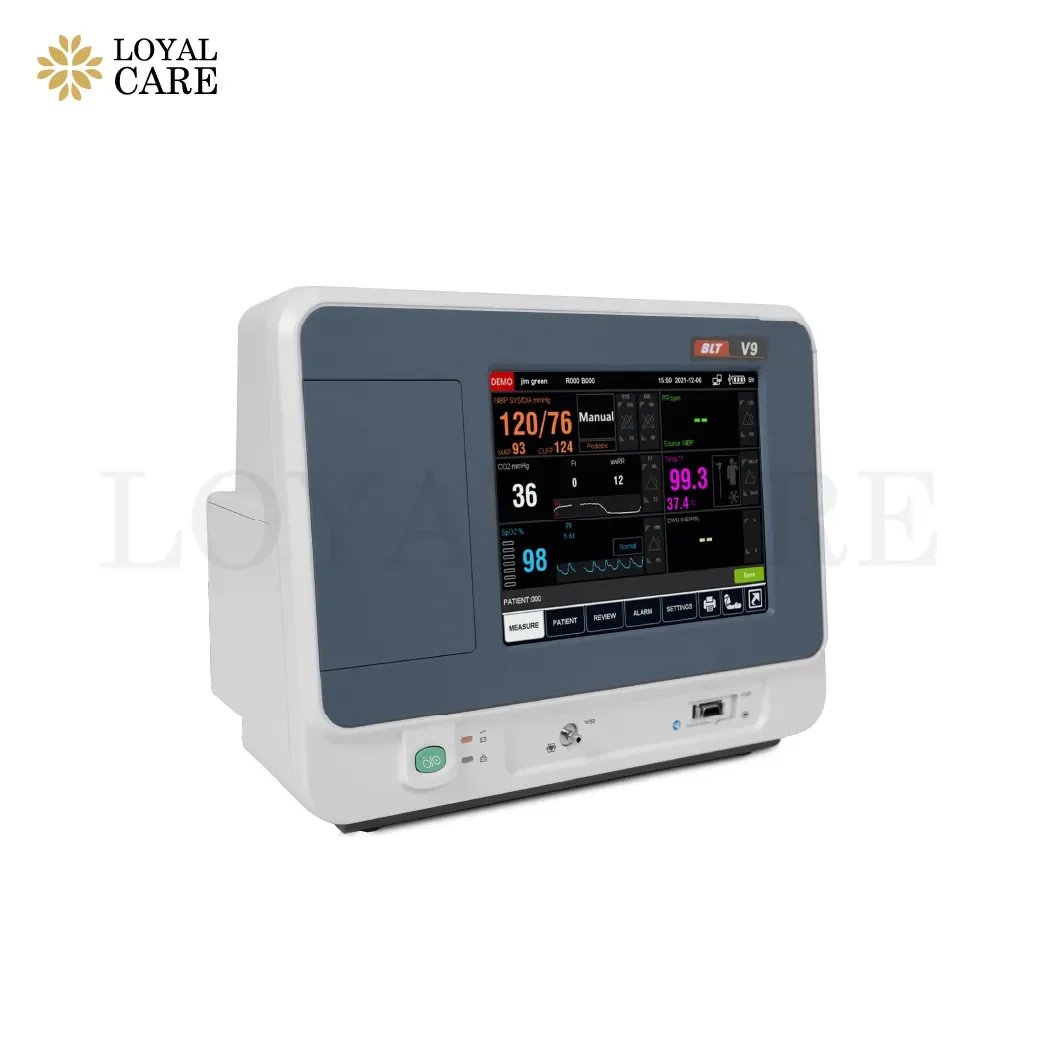

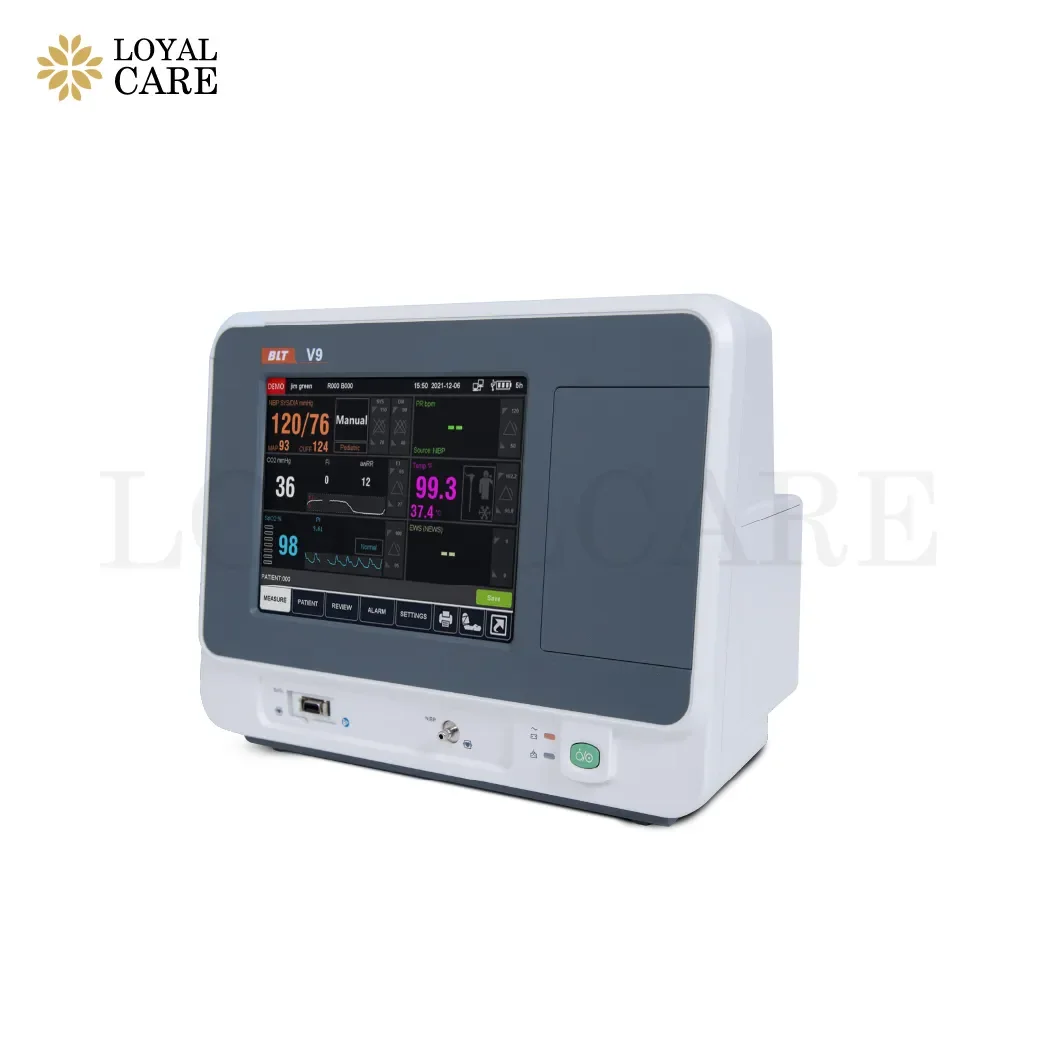

• Large 8-inch high-resolution touchscreen for intuitive operation

• Adjustable display layouts with color-coded parameters for easy viewing

• 12° tilted display provides improved viewing angle and user comfort

• Physiological alarm system with visual and audible alerts (High, Medium, and Low priority)

• Long-lasting rechargeable battery for portable monitoring

• Suitable for hospitals, clinics, emergency departments, and bedside monitoring

Technical Specifications

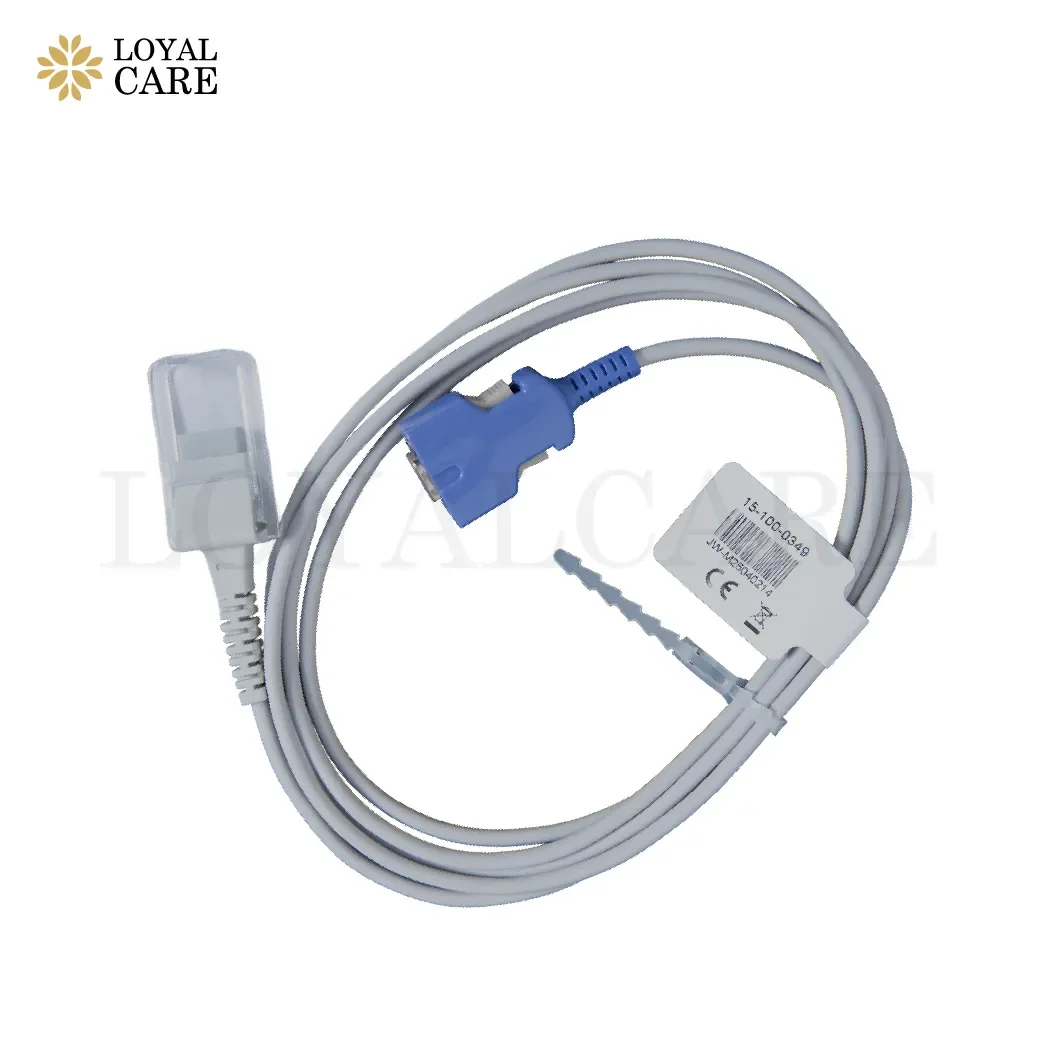

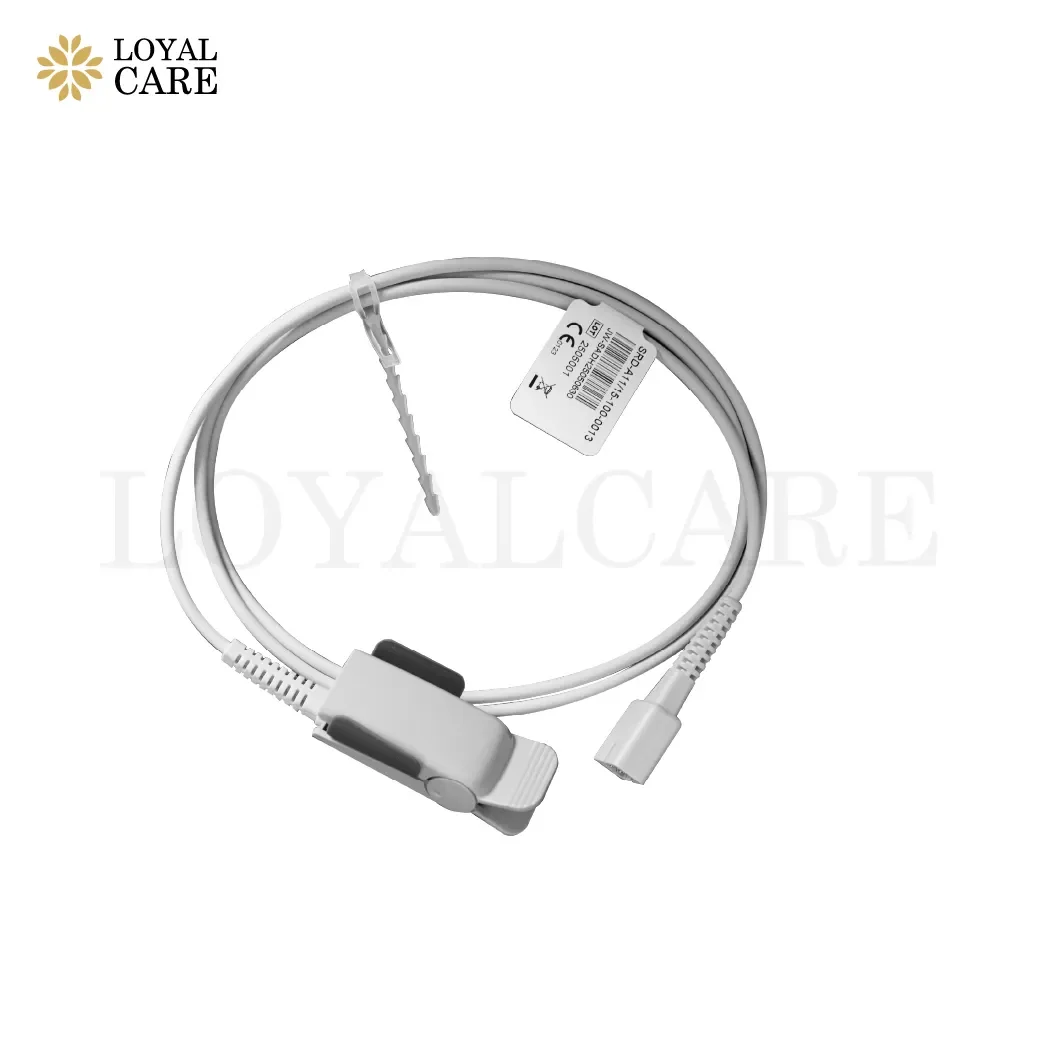

SpO₂ Monitoring
Measurement Range: 0–100%
Accuracy: ±2% (70–100%)

Pulse Rate (PR)
Measurement Range: 20–250 bpm
Accuracy: ±1 bpm or ±1%

Body Temperature
   Compatible with Covidien Filac 3000 Smart Electronic Thermometer
   Temperature Range: 30.0–43.0°C
   Measurement Sites:
          - Oral
          - Axillary
          - Rectal
   Measurement Modes:
          - Quick Mode
          - Cold Mode
          - Monitor Mode
   Units: °C / °F
   Resolution: 0.1°C (0.1°F)
   Accuracy: ±0.1°C

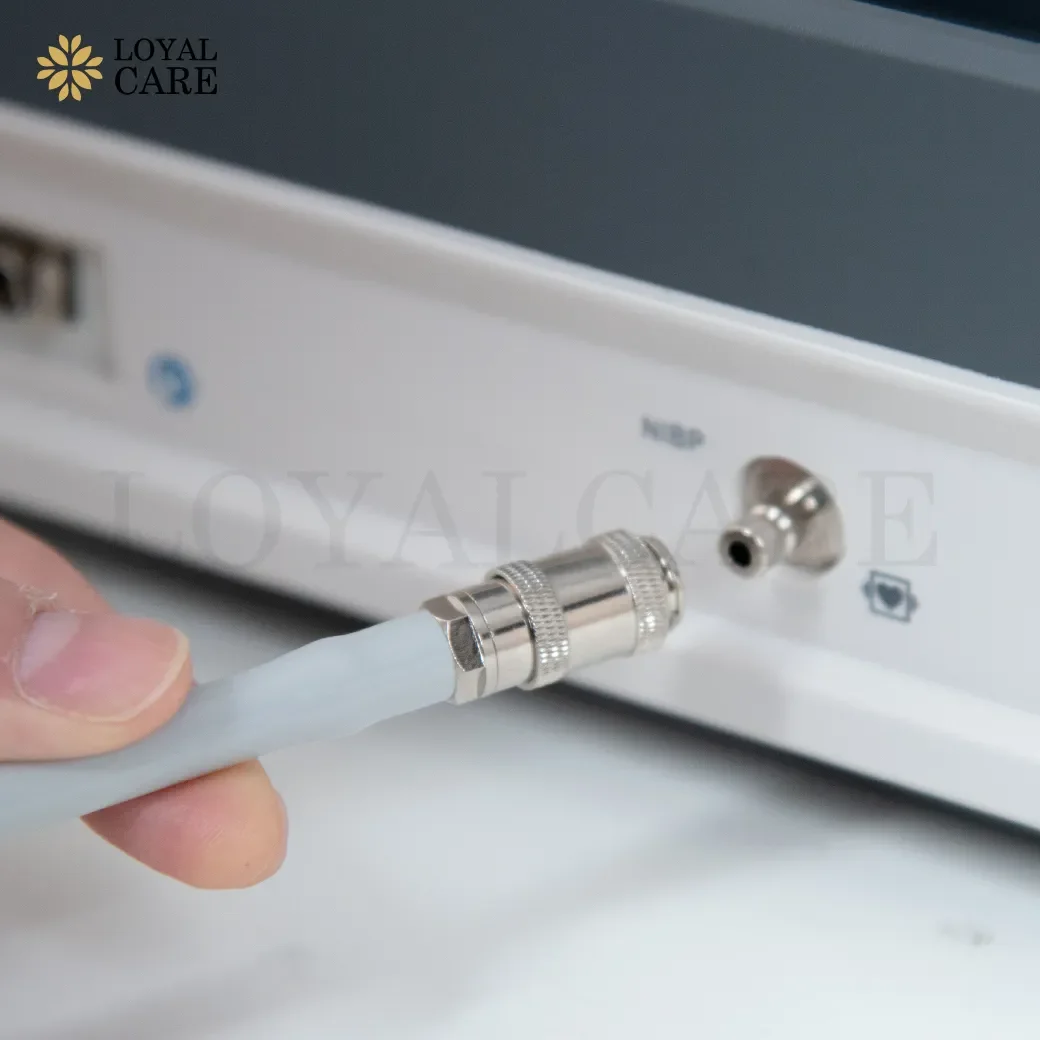

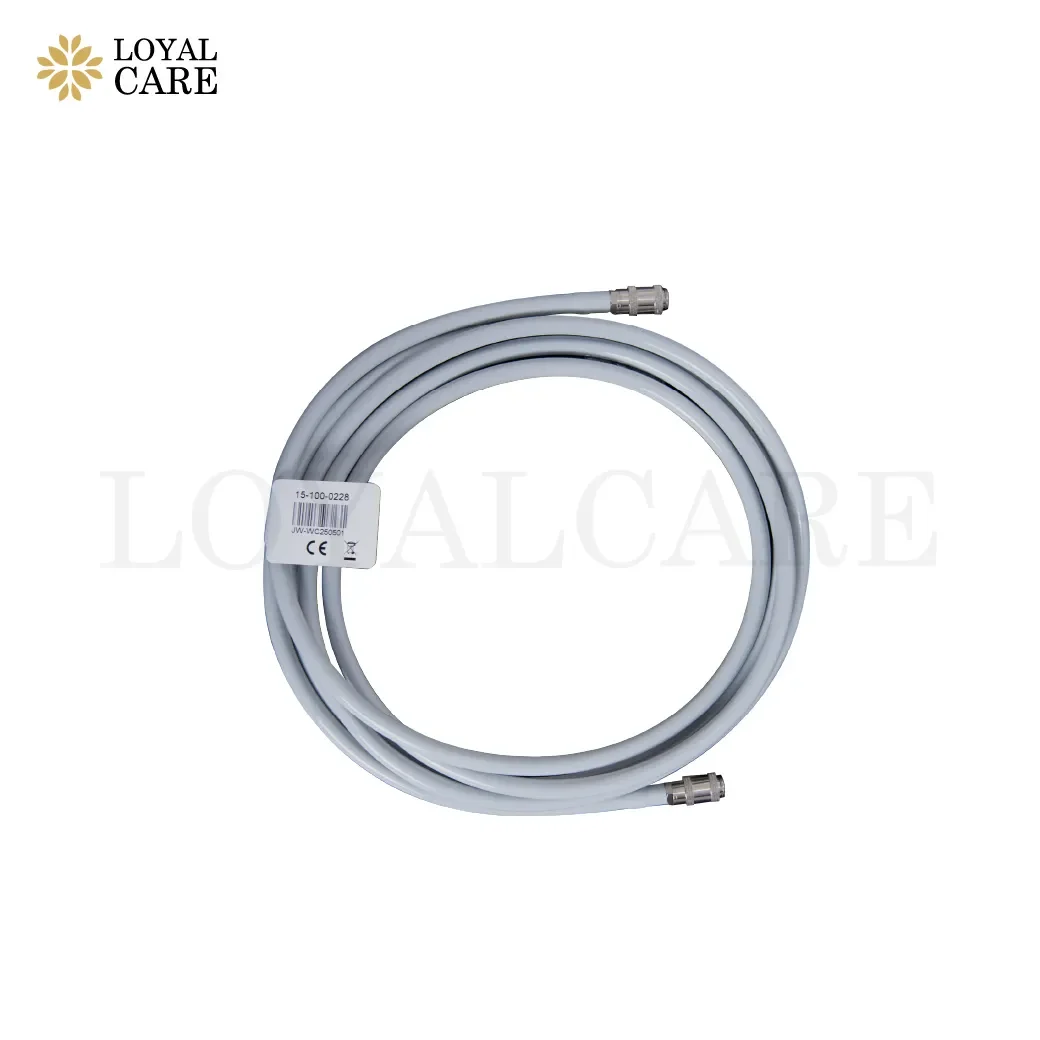

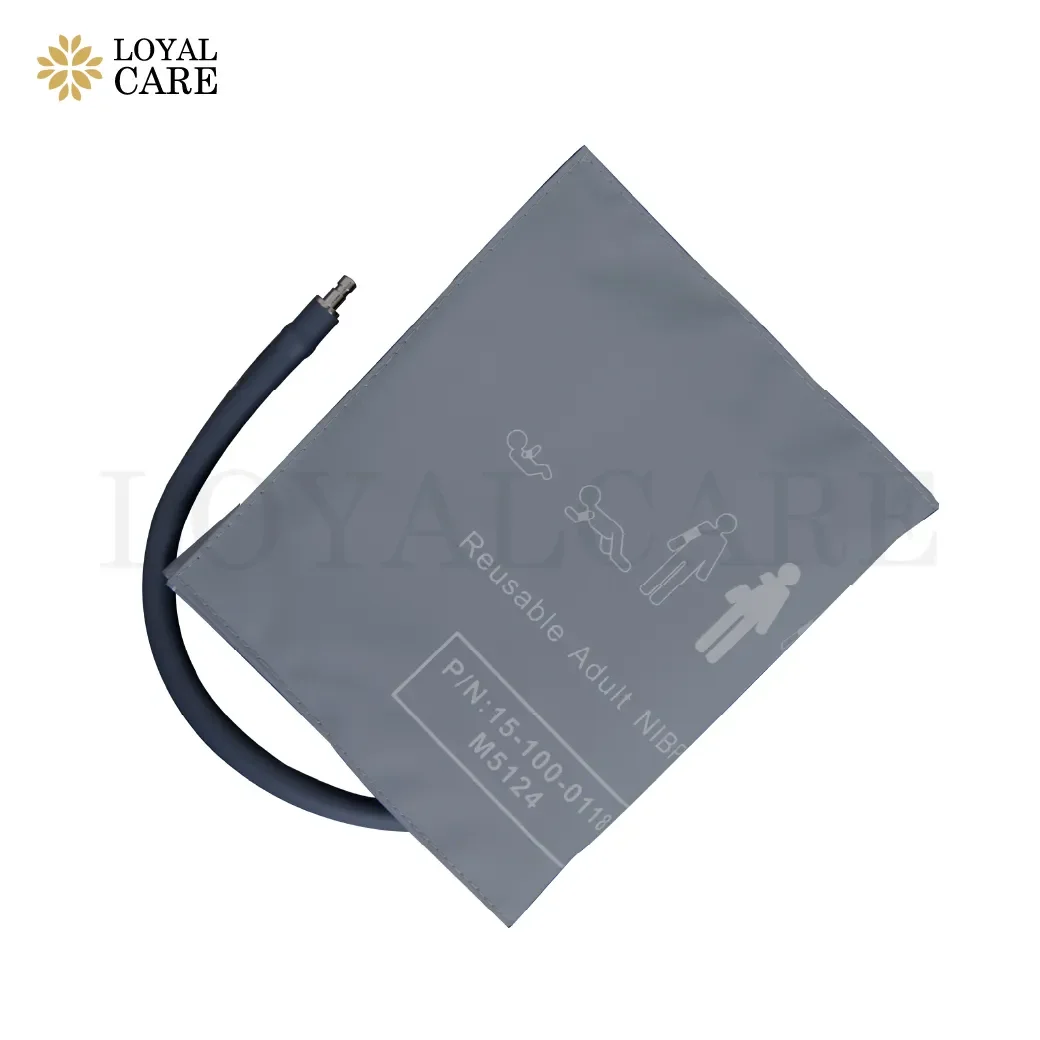

Non-Invasive Blood Pressure (NIBP)
   Oscillometric measurement technology
   Measurement Modes:
          - Manual
          - Auto
          - STAT
   Automatic Interval:
          - Every 1, 2, 3, 4, 5, 10, 15, 30, 60, or 90 minutes
          - Every 2, 4, or 8 hours

Blood Pressure Measurement Range
Adults
   Systolic: 30–270 mmHg
   Diastolic: 10–220 mmHg
   Mean Pressure: 20–235 mmHg

Pediatric
   Systolic: 30–235 mmHg
   Diastolic: 10–220 mmHg
   Mean Pressure: 20–225 mmHg

Neonatal
   Systolic: 30–135 mmHg
   Diastolic: 10–100 mmHg
   Mean Pressure: 20–125 mmHg

Additional NIBP Features:
   Cuff Pressure Range: 0–300 mmHg
   Pulse Rate Range: 40–240 bpm
   Static Pressure Accuracy: ±3 mmHg
   Clinical Accuracy:
          - Mean Error: ±5 mmHg
          - Standard Deviation: < ±8 mmHg
   Built-in software over-pressure protection:
          - Adult: 297 ±3 mmHg
          - Pediatric: 252 ±3 mmHg
          - Neonatal: 147 ±3 mmHg

Alarm System
   Physiological alarm with audible and visual notifications
   Three priority levels:
          - High
          - Medium
          - Low

Memory Capacity
   Patient Records: More than 1,000
   Parameter Records: More than 5,000
   Alarm Events: More than 100,000
   Log Events: More than 10,000

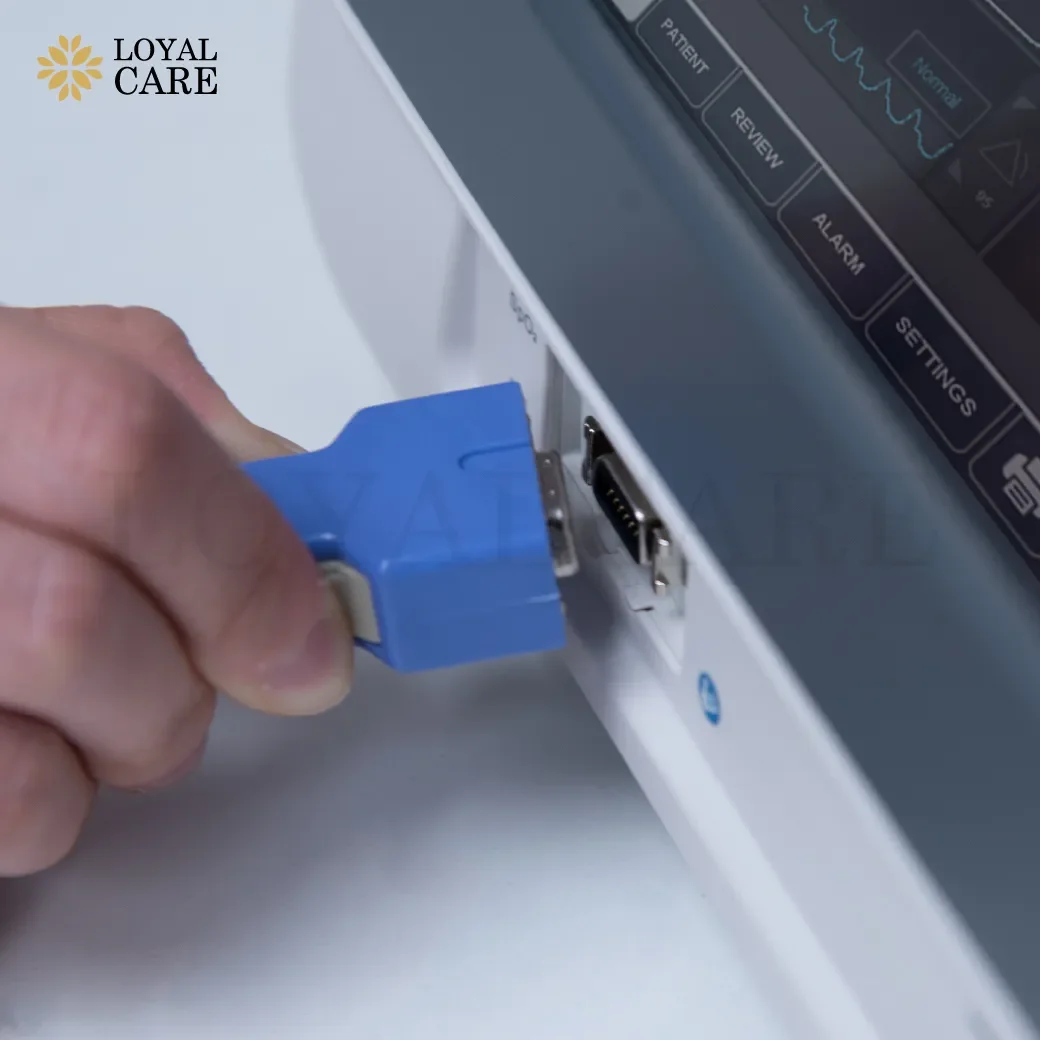

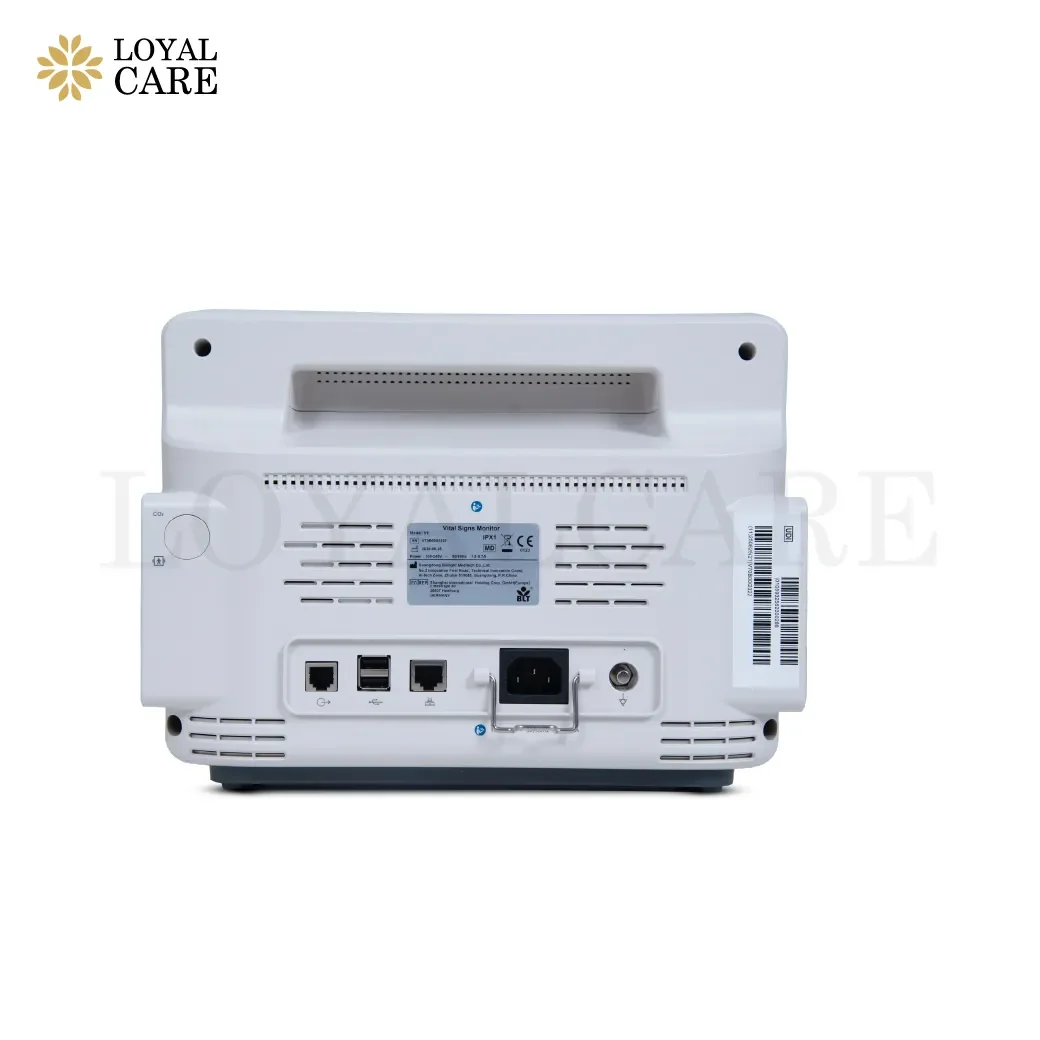

Connectivity
   USB Keyboard & Mouse Support
   USB Barcode Scanner
   RJ45 Wired Ethernet
   Hospital Network Support (RJ11 / EMR / HL7)
   Dual USB Ports

Warranty & Service

• 1-Year Warranty

• Nationwide free shipping

• Local service center with professional technical support and after-sales service.
